Machinist Rule Increments Guide: 3R, 4R, 5R, 16R, E/M, D/M, and Metric

In this machinist rule increments guide, we’ll delve into the distinct features of 3R, 4R, 5R, 16R, E/M, D/M, and Metric machinist rules, explaining how each style helps you achieve accurate, reliable measurements. Precision is the backbone of any machine shop, whether you’re a seasoned professional or a dedicated hobbyist, the right machinist rule can make all the difference in your metrology results. By the end, you’ll know exactly which graduation style best fits your precision measurement needs and where to find your best fit machinist tools at PEC Tools.

1. 3R Graduations

• Typical Increments: 1/32” & 1/64” on one side, 0.1” & 0.02” on the other.
• Primary Use: Ideal for tasks requiring both fractional and decimal readings without switching tools.
• Who It’s For: Machinists and metalworkers who frequently convert between decimal and fractional inches.

Key Advantages:

1. Combines fractional and decimal readings in one tool.
2. Suitable for fast conversions during layout and measurement.

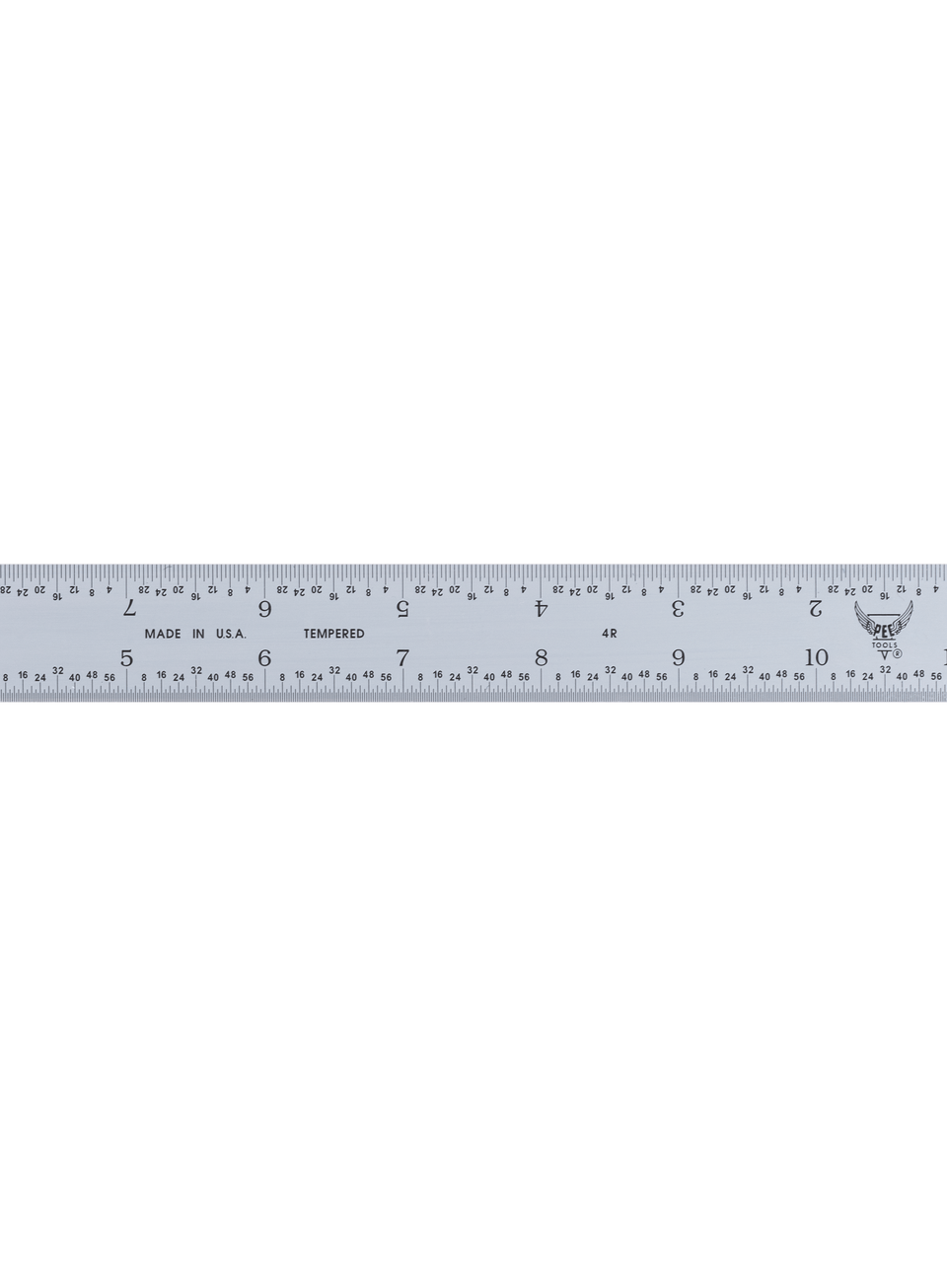

2. 4R Graduations

• Typical Increments: 1/8” & 1/16” on one side, 1/32” & 1/64” on the other.
• Primary Use:A go-to choice for many everyday tasks in the workshop.
• Who It’s For: Woodworkers, general tradespeople, and DIY users who typically work in fractional measurements.

Key Advantages:

1. Versatile for most standard layout and marking tasks.
2. Offers a complete range of common fractional increments.

3. 5R Graduations

• Typical Increments: 1/32” & 1/64” on one side, 0.1” & 0.01” on the other.
• Primary Use: Balances precision decimal readings with fine fractional measurements.
• Who It’s For: Inspection technicians and precision machinists requiring tight tolerance control.

Key Advantages:

1. High-resolution measurement options.
2. Excellent for dimensional verification and quality assurance.

4. 16R Graduations

• Typical Increments: 1/32” & 1/64” on one side, 0.02” & 0.01” on the other.
• Primary Use: Ultra-fine decimal-inch readings for high-precision applications.
• Who It’s For: Mold makers, toolmakers, and metrologists working to extremely fine tolerances.

Key Advantages:

1. Provides ultra-fine decimal resolution.
2. Perfect for high-precision shop and lab environments.

5. E/M – English/Metric Scales

• Typical Increments: 1/32” & 1/64” on one side, 1 mm & 0.5 mm on the other.
• Primary Use: Enables easy conversion between imperial fractions and metric units.
• Who It’s For: Engineers, technicians, and contractors working across imperial and metric systems.

Key Advantages:

1. Ideal for international or dual-standard projects.
2. Allows quick transitions between systems without switching tools.

6. D/M – Decimal Inch/Metric Scales

• Typical Increments: 0.1” & 0.02” on one side, 1 mm & 0.5 mm on the other.
• Primary Use: Optimized for CNC programming and environments using decimal and metric input.
• Who It’s For: CNC operators and engineers who work in both decimal inch and metric systems.

Key Advantages:

1. Simplifies the measuring process in high-precision machining.
2. Pairs well with digital readout systems and CAD tools.

7. Metric Graduations

• Typical Increments: 1 mm & 0.5 mm on both sides.
• Primary Use: Standard for scientific, academic, and metric-only industrial applications.
• Who It’s For: International users and professionals in metric-dominant regions.

Key Advantages:

1. Simple, standardized metric layout.
2. Ideal for schools, labs, and public infrastructure projects.

Machinist Rule Increments Guide - How to Choose the Right Increment

1. Identify the Measurement Format in Your Project

• If your plans are strictly fractional, a 4R rule is ideal.
• If you occasionally work in decimals, 3R gives you both fractional and decimal formats.
• If your work relies on decimal-inch dimensions, 5R or 16R are better suited — with 16R offering ultra-fine resolution.
• For global or metric-based projects, choose an E/M, D/M or Metric scale depending on your format preference.

2. Consider Project Complexity

• 4R provides the most common fractional increments for everyday machinist layouts.
• 3R is great for machinists who frequently work in both fractional and decimal inch formats and need quick conversions between the two.
• 5R balances precision decimals and fine fractions, ideal for inspection and part fitting.
• 16R is excellent for high-precision tasks requiring fine decimal readings.
• E/M and D/M are flexible options when switching between metric and imperial.

3. Think About Long-Term Convenience

• If your workload changes often or involves global standards, E/M or D/M scales offer the best versatility.
• If your tasks are specialized and consistent, you can choose a dedicated fractional or metric/decimal scale.
• Metric rules are best for international work environments, science labs, academic settings, and engineering fields where metric is the standard.

4. Quality and Durability Matter

• Always choose rulers made from hardened and tempered steel with clear, durable graduations.
• PEC Tools rulers are designed to last through years of daily shop use.
